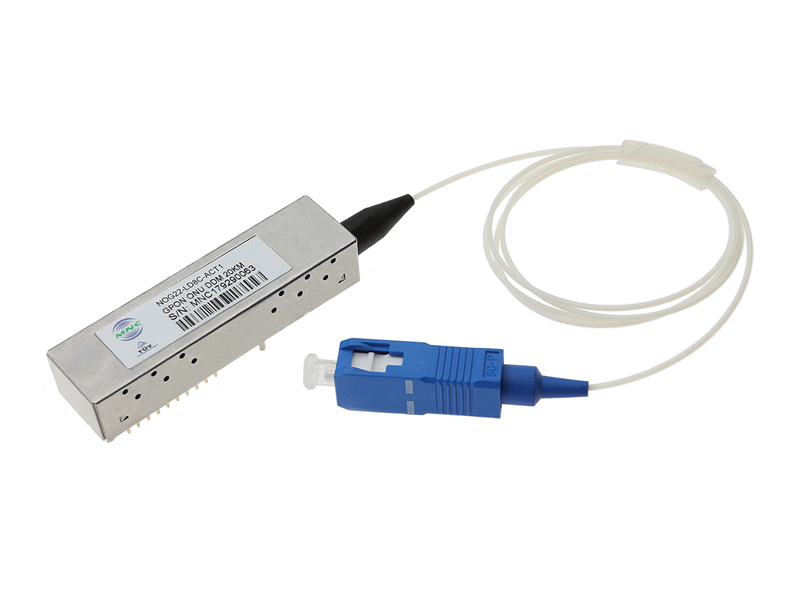

Single Fiber GPON ONU Transceiver
1310nm burst-mode 1.24416 Gb/s transmitter with DFB laser
1490nm continuous-mode 2.488Gb/s APD receiver
Compliant with ITU-T G.984.2 Class B+
Compliant with ITU-T G.984.5
Digital diagnostic monitoring (DDM) with internal calibration
2×10 Small Form Factor (SFF) Metallic Package with SC/UPC pigtail optical interface
Burst On/Off time is less than 12.8ns
+3.3V separated power supply
LVTTL interface logic level for AC or DC coupled data input
CML interface logic level for AC coupled data output
LVTTL for burst signal input
LVTTL for receiver loss of signal detect indication
Compliant with RoHS 2.0
Operating temperature range： 0℃~+70℃
